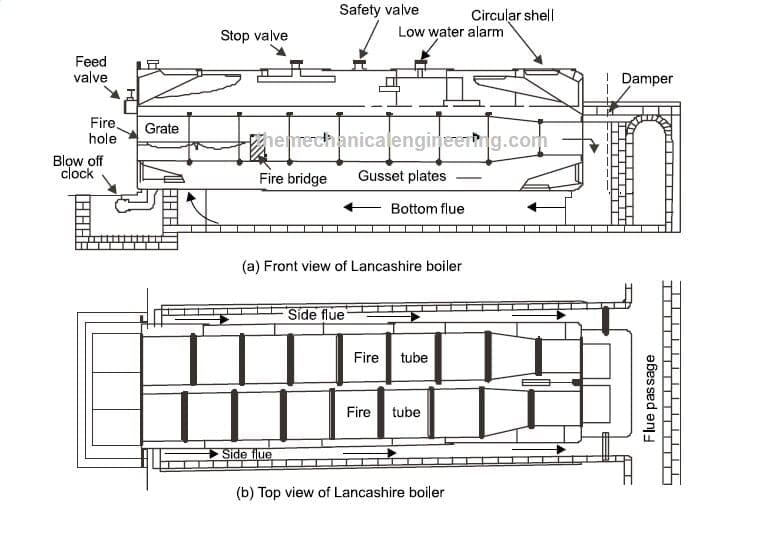

Lancashire Boiler Construction And Working. Definition, construction, working, uses, advantages and disadvantages. This boiler is invented by sir william fairbairn in the year 1844.the flue gases flows through the fire tube, situated inside the boiler shell, so it is a fire tube boiler.
Boiler shell the boiler shell is made of steel plates. The heat is transfer from flue gases to the water through convection. Construction of lancashire boiler 1.
The Plate Is Bent Into A Circular Form And Then Welded Or Riveted Together By Lap Joints.
This is a shell and tube type heat exchanger where the exhaust gases flow through the tubes and water flows through shell. The dish ended construction reduces the tendency of bulging of the end plates and therefore it does not. This is a shell and tube heat exchanger where the water circulates through the shell, and the exhaust gas flows through the tube.
Lancashire Boiler Is A Horizontal Type And Stationary Fire Tube Boiler.
The solid fuel that is coal is placed at the grate for burning and producing heat. Working principle of lancashire boiler: The working of a cornish boiler is similar to that of a lancashire boiler but in a lancashire boiler, two fire tubes are used whereas in a cornish boiler only one fire tube is used.
A Heat Exchanger Is A Device That Is Used For The Transfer Of Heat Between Two Or More Fluids.
It is capable of producing steam at 1350 kg/hr and can take a maximum steam pressure of 11 bar. But his patent was for the method of firing the furnaces alternately. In the locomotive boiler, first, the solid fuel (coal) is inserted on the grate and is ignited from the fire hole.
The Topic Is A Part Of The Applied Thermodynamics Course That.
Watch this video and learn about the complete construction and working of a lancashire boiler. Boiler shell the boiler shell is made of steel plates. Lancashire boiler works on the heat exchanger principle.
The Lancashire Boiler Is Working On The Principle Of A Heat Exchanger.
Then, this water goes to the economiser where this device preheats the water with the help of combustion chamber heat. Lancashire boiler works in the following way: There is furnace used inside of the boiler.
